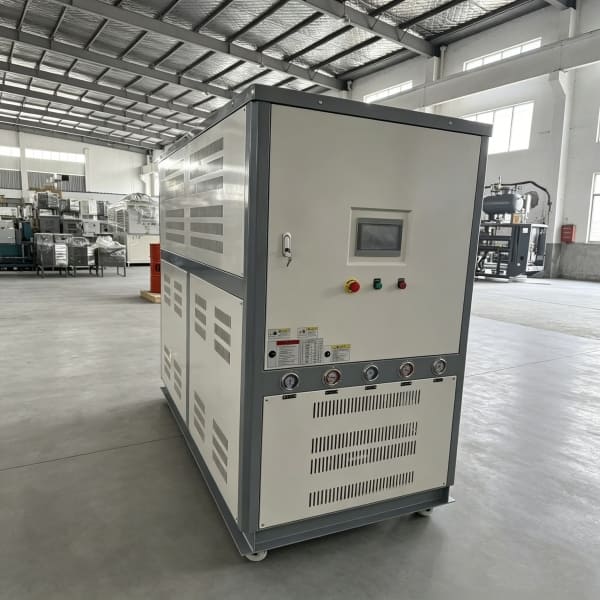

Water-cooled Cooling & Heating
Integrated Unit
Precision-engineered temperature control circulators built for the world's most demanding OEM/ODM applications. Delivering ±0.5℃ stability, ATEX-certified explosion-proof options, and full CE/UL compliance documentation for seamless entry into global premium markets.
Technical Specifications
Engineered for precision and reliability in demanding industrial environments
Performance Parameters
| Temperature Range | -80°C to +250°C |
| Temperature Stability | ±0.5°C |
| Heating Capacity | 9kW - 350kW |
| Cooling Capacity | 9kW - 350kW |
| Flow Rate | 20-1000 L/min |
| Working Pressure | 0.5-16.0 bar |
| Noise Level | ≤55dB |
| Power Supply | 380V/50Hz, 3Ph. (Customized) |
Key Features
-
Dual heating/cooling functionality in single unit
-
316L stainless steel fluid path (GMP compliant)
-
Advanced PID temperature control system
-
Explosion-proof variants available (ATEX certified)
-
Remote monitoring and IoT integration ready
Compliance Standards
Core Components
Premium industrial-grade components engineered for reliability, precision, and long-term performance in demanding environments.

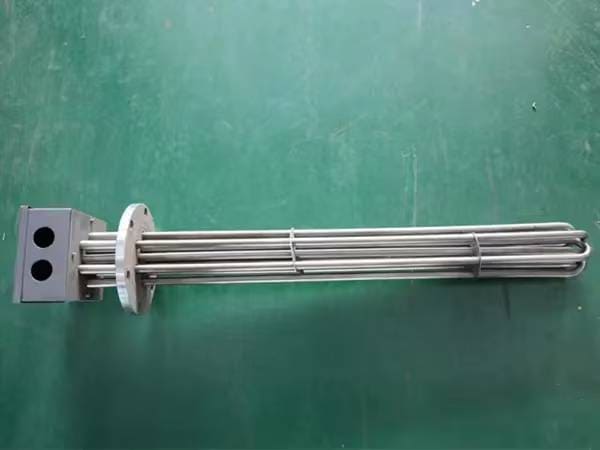

Heating Elements
High-efficiency stainless steel heating elements with uniform heat distribution. Designed for continuous operation with excellent thermal conductivity and corrosion resistance.
- ▪ 316L stainless steel construction
- ▪ Temperature range: -40℃ to 200℃
- ▪ FDA compliant materials
Oil Circulation Pump
Precision-engineered circulation pump ensuring optimal fluid flow and pressure consistency. Built for high-viscosity fluids with minimal maintenance requirements.
- ▪ High-pressure resistant design
- ▪ Variable flow rate control
- ▪ Low-noise operation ≤45dB

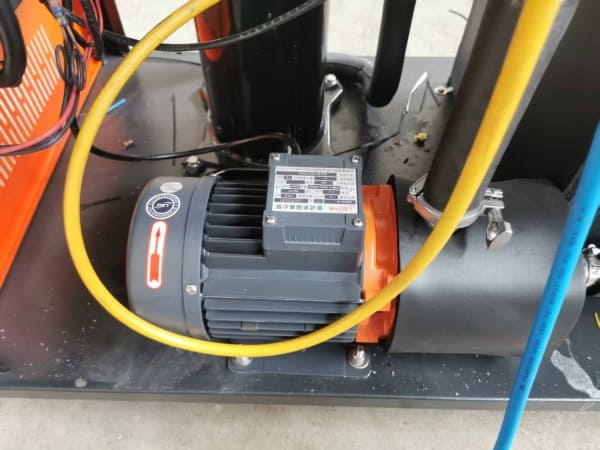

Chilled Pump
Advanced centrifugal pump system optimized for chilled fluid circulation. Features anti-cavitation design and energy-efficient motor for continuous operation.
- ▪ Anti-cavitation impeller design
- ▪ Energy efficiency COP ≥4.8
- ▪ Explosion-proof versions available

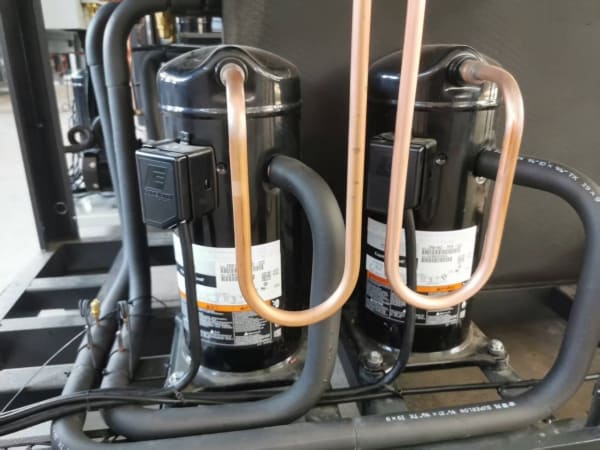

Compressor
High-performance scroll compressor with magnetic levitation technology. Delivers exceptional efficiency and reliability for industrial cooling applications.
- ▪ Magnetic levitation technology
- ▪ Vibration-free operation
- ▪ R1234yf eco-friendly refrigerant

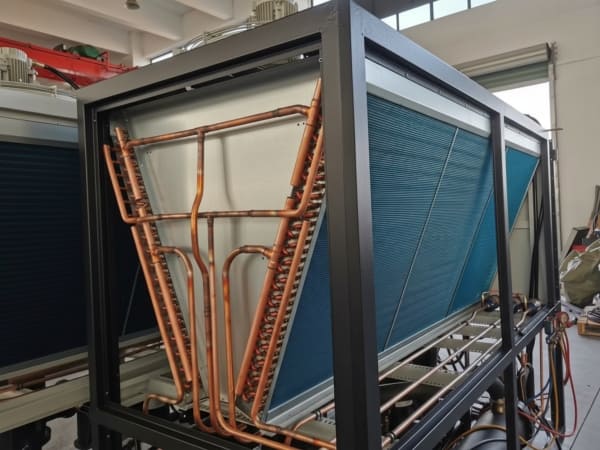

Condenser
Advanced heat exchanger with optimized fin design for maximum thermal efficiency. Corrosion-resistant coating ensures long-term performance in harsh environments.
- ▪ Optimized fin design
- ▪ Corrosion-resistant coating
- ▪ High thermal efficiency
Evaporator
Compact multi-channel copper brazed PHE delivers superior heat transfer, corrosion resistance and reliable operation for harsh industrial cooling applications.
- ▪ Shell-and-tube design
- ▪ Enhanced heat transfer surfaces
- ▪ Optimal refrigerant distribution

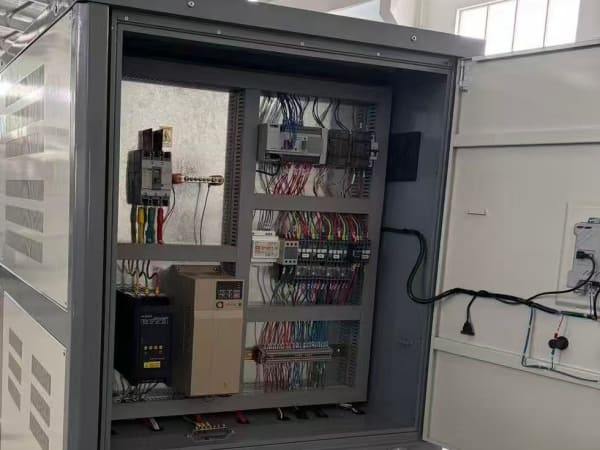

Electric Control System
SMART CONTROLIntelligent control system with PCBA integration for real-time monitoring and automation. Features remote connectivity, predictive maintenance alerts, and precision temperature regulation with ±0.5℃ accuracy.
Control Features
- ▪ PLC-based control system
- ▪ 7" / 10" HMI touchscreen interface
- ▪ Remote monitoring capability
Safety & Compliance
- ▪ ATEX explosion-proof optional
- ▪ Multi-layer safety protection
- ▪ Data logging & traceability
Need Custom Component Specifications?
Contact our engineering team for detailed component specifications and customization options for your specific application.
Manufacturing Process
From concept to delivery - our comprehensive OEM/ODM process ensures quality and precision at every step
Initial Consultation
We begin by understanding your application scenario, industry requirements, and technical constraints -- ensuring every subsequent step is precisely aligned with your project goals.
- • Review of target industry (pharma, new energy, aerospace, chemical, etc.)
- • Clarification of temperature range, cooling capacity, and process conditions
- • Assessment of compliance needs (CE, UL, ATEX, GMP, F-Gas, etc.)
- • Identification of special requirements (explosion-proof, cleanroom, corrosion resistance)

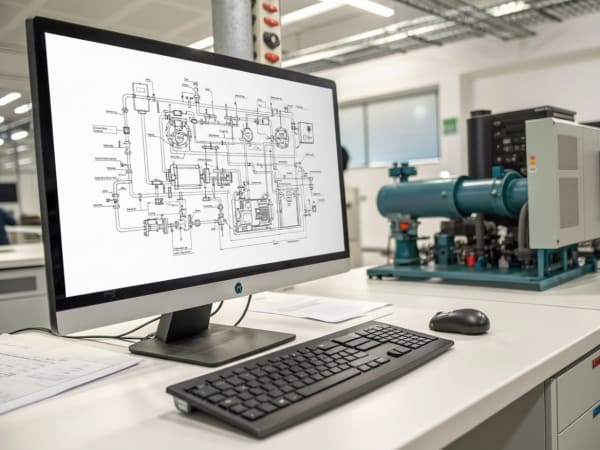

Design & Engineering
Custom design based on your specific requirements including temperature range, capacity, and compliance standards.
- • Thermal analysis and load calculations
- • 3D modeling and CFD simulation
- • Material selection and compatibility
- • Compliance documentation preparation

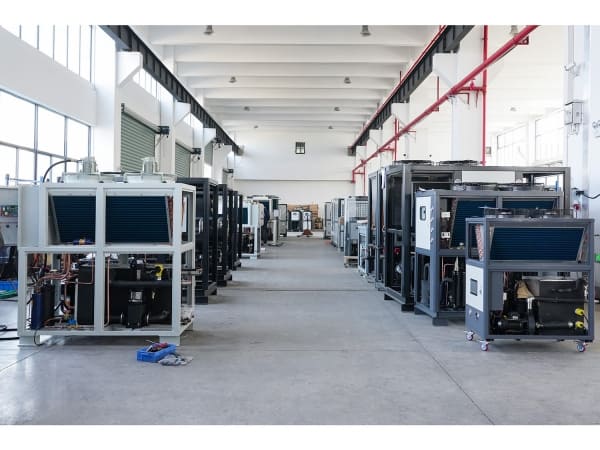

Precision Manufacturing
ISO 9001 certified production with strict quality control and traceability throughout the manufacturing process.
- • CNC machining and fabrication
- • Component assembly and integration
- • Quality inspection at each stage
- • Material traceability documentation

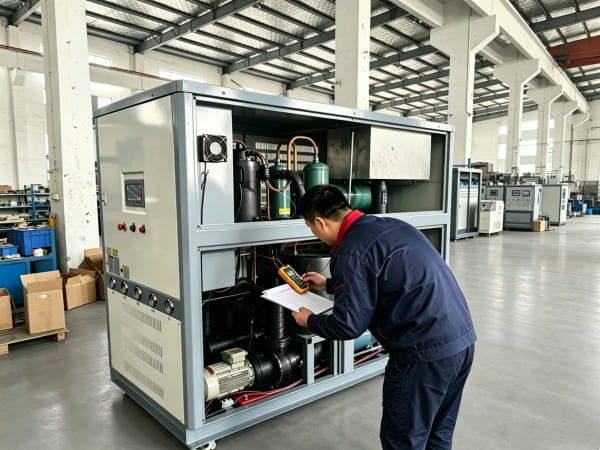

Testing & Commissioning
Comprehensive factory acceptance testing and on-site commissioning to ensure optimal performance.
- • Factory Acceptance Test (FAT)
- • Performance verification
- • Calibration and certification
- • Operator training and documentation

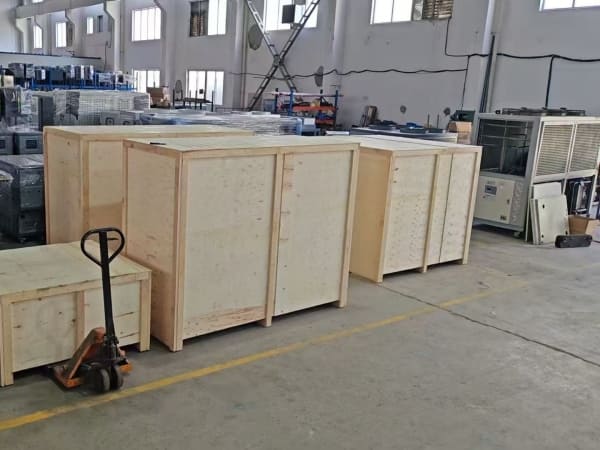

Delivery & Support
Secure packaging and worldwide shipping with comprehensive after-sales support and maintenance services.
- • Professional packaging and logistics
- • Installation and startup support
- • 24/7 technical support hotline
- • Preventive maintenance programs
Industry Applications
Trusted by global leaders in high-precision industries requiring reliable temperature control
Pharmaceutical
API synthesis, bioreactors, crystallization processes requiring GMP compliance and precise temperature control.
Chemical Processing
Reactor cooling, distillation, and hazardous area applications with explosion-proof designs.
Aerospace Testing
Environmental testing chambers, component validation, and precision manufacturing processes.
Battery Manufacturing
Lithium battery production, thermal management systems, and quality control testing.
Ready to Start Your Project?
Direct factory contact for customized cooling & heating circulator solutions. No retail - B2B only.
Zhangjiagang, Jiangsu, China
