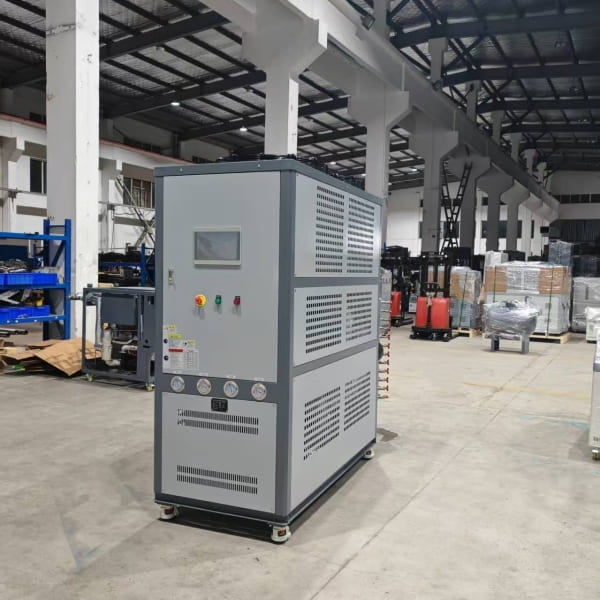

Air-Cooled Cooling &
Heating Integrated Unit
Revolutionary dual-function temperature control for extreme industrial applications. Delivering -50℃ to +300℃ range with ±0.5℃ precision for aerospace, pharmaceutical, and chemical processing.
Technical Specifications
Engineered for extreme performance with industry-leading precision and reliability standards.
Core Parameters
Air-Cooled Cooling & Heating Integrated Unit
| Temperature Range | −50°C ～ +300°C |
| Temperature Precision | ± 0.5°C (Customized) |
| Cooling Capacity | 10kW - 180kW |
| Heating Capacity | 10kW - 180kW |
| Refrigerant | R134a / R1234yf / R450A |
| Operating Pressure | 5 - 20 bar |
| Noise Level | ≤ 58dB |
Dual-Mode Operation
Seamless switching between cooling and heating modes with automated temperature control for diverse industrial processes.
Energy Efficiency
Advanced heat recovery system with COP ≥ 4.8, reducing operational costs while maintaining optimal performance.
Safety Compliance
CE, UL, ATEX certified with explosion-proof options for hazardous environments and pharmaceutical applications.
Core Components
Premium industrial-grade components engineered for reliability, precision, and long-term performance in demanding environments.
Heating Elements
High-efficiency stainless steel heating elements with uniform heat distribution. Designed for continuous operation with excellent thermal conductivity and corrosion resistance.
- ▪ 316L stainless steel construction
- ▪ Temperature range: -40℃ to 200℃
- ▪ FDA compliant materials
Oil Circulation Pump
Precision-engineered circulation pump ensuring optimal fluid flow and pressure consistency. Built for high-viscosity fluids with minimal maintenance requirements.
- ▪ High-pressure resistant design
- ▪ Variable flow rate control
- ▪ Low-noise operation ≤45dB
Chilled Pump
Advanced centrifugal pump system optimized for chilled fluid circulation. Features anti-cavitation design and energy-efficient motor for continuous operation.
- ▪ Anti-cavitation impeller design
- ▪ Energy efficiency COP ≥4.8
- ▪ Explosion-proof versions available
Compressor
High-performance scroll compressor with magnetic levitation technology. Delivers exceptional efficiency and reliability for industrial cooling applications.
- ▪ Magnetic levitation technology
- ▪ Vibration-free operation
- ▪ R1234yf eco-friendly refrigerant
Condenser
Advanced heat exchanger with optimized fin design for maximum thermal efficiency. Corrosion-resistant coating ensures long-term performance in harsh environments.
- ▪ Optimized fin design
- ▪ Corrosion-resistant coating
- ▪ High thermal efficiency
Evaporator
Compact multi-channel copper brazed PHE delivers superior heat transfer, corrosion resistance and reliable operation for harsh industrial cooling applications.
- ▪ Shell-and-tube design
- ▪ Enhanced heat transfer surfaces
- ▪ Optimal refrigerant distribution

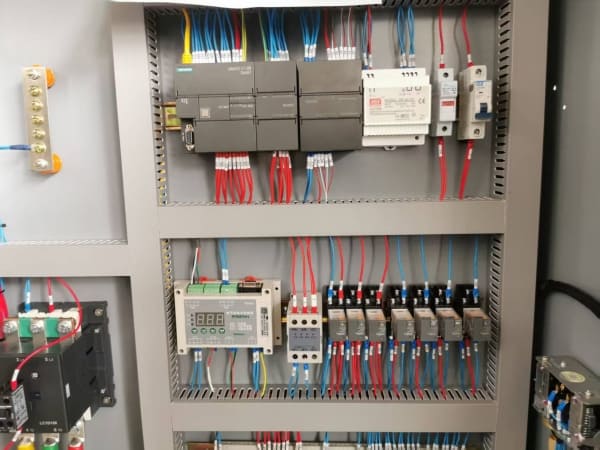

Electric Control System
SMART CONTROLIntelligent control system with PCBA integration for real-time monitoring and automation. Features remote connectivity, predictive maintenance alerts, and precision temperature regulation with ±0.5℃ accuracy.
Control Features
- ▪ PLC-based control system
- ▪ 7" / 10" HMI touchscreen interface
- ▪ Remote monitoring capability
Safety & Compliance
- ▪ ATEX explosion-proof optional
- ▪ Multi-layer safety protection
- ▪ Data logging & traceability
Need Custom Component Specifications?
Contact our engineering team for detailed component specifications and customization options for your specific application.
OEM/ODM Ordering Process
From initial consultation to delivery, we ensure seamless collaboration and quality assurance at every stage of your custom chiller project.
Initial Consultation
1-3 Working DaysTechnical requirements analysis, application scenario assessment, and preliminary feasibility study. Our engineers evaluate your specific cooling needs and compliance requirements.
- • Load calculation & capacity sizing
- • Environmental condition assessment
- • Compliance requirements review
Design & Engineering
3-5 Working DaysCustom design development with 3D modeling, thermal simulation, and detailed engineering drawings. Full compliance documentation and certification planning included.
- • 3D CAD modeling & simulation
- • Material selection & sourcing
- • Certification pathway planning
Customized Production
20-40 Working DaysEnd-to-end OEM/ODM customization from industry demand analysis to mass production, material compatibility, and explosion-proof grade. Rapid prototyping with full compliance documentation for global B2B partners.
- • ISO9001 quality management
- • Batch consistency control
- • Real-time production monitoring
Prototyping & Testing
2-7 Working DaysRapid prototype development with comprehensive performance testing, quality validation, and client approval process. Full documentation and test reports provided.
- • Performance testing & validation
- • Quality assurance protocols
- • Client approval & feedback integration
Delivery & Support
2-5 Working DaysSecure packaging, global logistics coordination, and comprehensive after-sales support including installation guidance, calibration, and ongoing technical assistance.
- • Global logistics & secure packaging
- • Installation & commissioning support
- • 24/7 technical assistance
Each project is managed by a dedicated engineering team with regular progress updates and transparent communication throughout the entire process.
