Single-Compressor
Water-Cooled Screw Chiller
High-efficiency cooling solution for pharmaceutical, chemical, and precision manufacturing industries. Delivering ±0.1℃ stability, energy-saving COP≥4.8, and 24/7 continuous operation reliability.
Energy Efficient
High COP ratio reduces operating costs by up to 35%
Reliable
Continuous 24/7 operation for critical production lines
Precise Control
PLC-based system with ±0.1℃ temperature stability
Global Standards
CE, UL, AHRI certified for international markets
Technical Specifications
Engineered for demanding industrial applications with precise temperature control and energy efficiency
| Parameter | Specification | Notes |
|---|---|---|
| Cooling Capacity | 50kW - 500kW | Customizable based on application |
| Temperature Range | 5℃ - 35℃ | Extended range available |
| Temperature Stability | ±0.1℃ | Precision control for critical processes |
| Compressor Type | Semi-hermetic Screw | High efficiency, low noise |
| Refrigerant | R134a / R1234yf / R450A | Eco-friendly options available |
| COP (Efficiency) | ≥4.8 | Energy-saving design |
| Noise Level | ≤65dB(A) | Low-noise operation |
| Control System | PLC + HMI Touchscreen | Remote monitoring ready |
| Power Supply | 380V/50Hz (3-phase) | Other voltages available |
| Protection Grade | IP54 | Dust and splash resistant |
| Certifications | CE, UL, AHRI | International compliance |
| Material (Tank) | 316L Stainless Steel | FDA/GMP compliant |
Customization Available
All specifications can be customized to meet your specific industrial requirements. Contact our engineering team for tailored solutions including explosion-proof designs, extended temperature ranges, and specialized materials.
Core Components
Premium-grade components ensure reliability, efficiency, and longevity in demanding industrial environments
Screw Compressor
Semi-hermetic twin-screw compressor with high volumetric efficiency and continuous duty rating. Features oil injection cooling, built-in capacity control (25-100%), and low vibration design.
- ▪ Brand: Bitzer / Hanbell / Refcomp (customizable)
- ▪ Efficiency: High COP with variable capacity control
- ▪ Reliability: Designed for 24/7 continuous operation
- ▪ Maintenance: Easy access for routine service

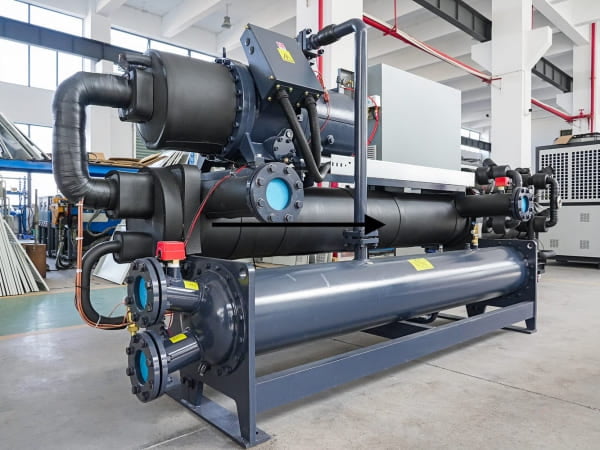

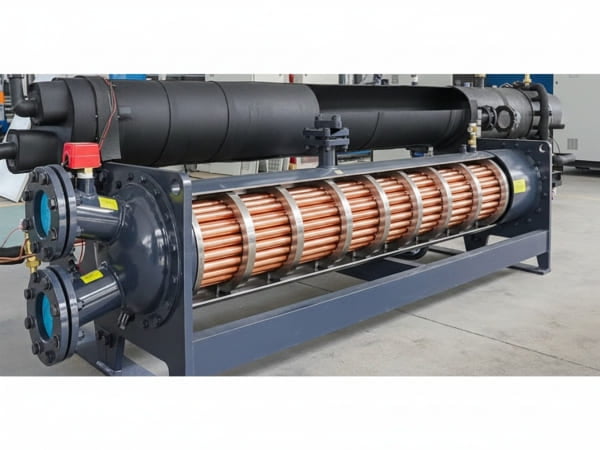

Shell & Tube Condenser
High-efficiency shell and tube heat exchanger with copper tubes and stainless steel shell. Designed for optimal heat transfer and corrosion resistance in water-cooled applications.
- ▪ Material: Copper tubes, 304/316L SS shell
- ▪ Design: Multi-pass configuration for maximum efficiency
- ▪ Fouling Factor: Optimized for long-term performance
- ▪ Pressure Rating: Designed to ASME standards

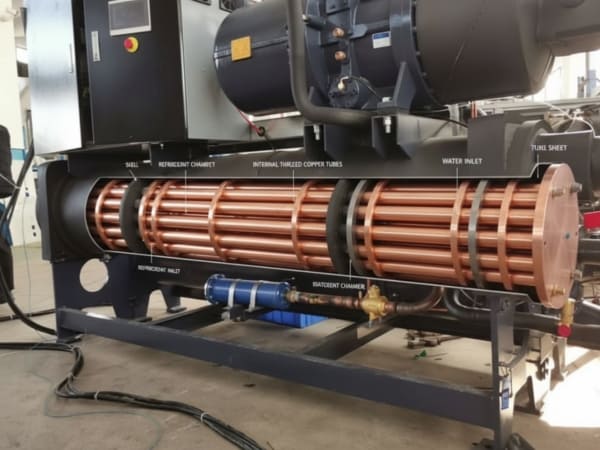

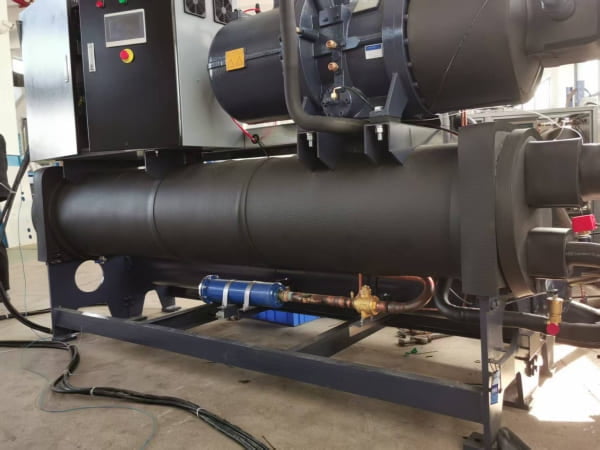

Shell & Tube Evaporator
Precision-engineered evaporator with enhanced heat transfer surfaces. Features dry expansion design with superheat control for optimal refrigerant utilization and temperature stability.
- ▪ Construction: Seamless copper tubes, sanitary-grade SS shell
- ▪ Efficiency: Enhanced surface technology for heat transfer
- ▪ Cleanability: Removable heads for easy maintenance
- ▪ Compliance: FDA/GMP standards for pharmaceutical use
Electronic/Thermostatic Expansion Valve
Precision flow control device that regulates refrigerant flow based on evaporator load. Electronic version provides superior response time and accuracy for critical temperature control applications.
- ▪ Type: Electronic (EEV) or Thermostatic (TXV)
- ▪ Control: Precise superheat regulation for efficiency
- ▪ Brand: Danfoss / Emerson / Sporlan
- ▪ Response: Fast adaptation to load changes
Oil Separator
High-efficiency oil separation system ensures minimal oil carryover to heat exchangers, maximizing heat transfer efficiency and system reliability. Features coalescent filter technology.
- ▪ Efficiency: 99.5%+ oil separation rate
- ▪ Design: Coalescent filter with automatic return
- ▪ Material: Carbon steel or stainless steel construction
- ▪ Maintenance: Replaceable filter elements

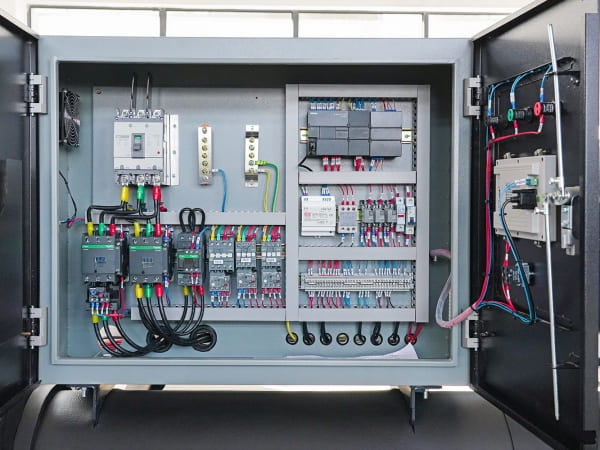

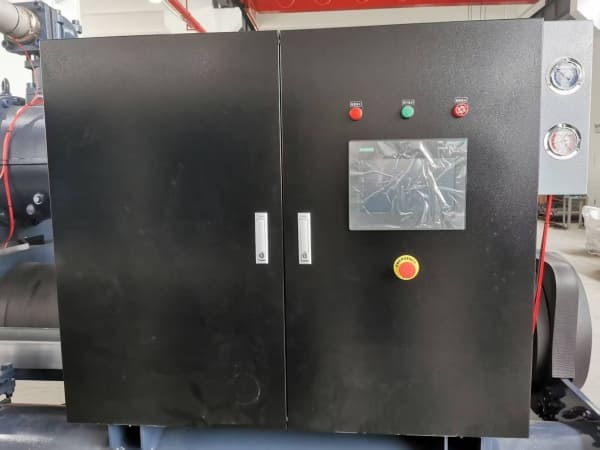

PLC Control Box
Advanced programmable logic controller with HMI touchscreen interface. Provides real-time monitoring, data logging, alarm management, and remote connectivity for Industry 4.0 integration.
- ▪ Controller: Siemens / Allen-Bradley / Schneider PLC
- ▪ Interface: 7-10" color touchscreen HMI
- ▪ Connectivity: Ethernet, Modbus, RS485 protocols
- ▪ Features: Data logging, remote monitoring, alarm history
Order to Delivery Process
Streamlined workflow from initial inquiry to final commissioning, ensuring quality and compliance at every stage
Inquiry & Consultation
Submit technical requirements. Our engineers analyze your application and recommend optimal configuration.
Engineering Design
Detailed design with CAD drawings, P&ID, load calculations, and compliance documentation (CE/UL/FDA).
Manufacturing
ISO9001-certified production with incoming QC, in-process inspection, and final leak/pressure testing.
Testing & Commissioning
Factory acceptance test (FAT) with performance verification, calibration, and documentation package.
Shipment & Support
Secure packaging, logistics coordination, on-site installation support, and 24/7 technical assistance.
Quality Assurance Throughout
Every stage includes rigorous quality checks, documentation, and customer approval points to ensure your chiller meets exact specifications and regulatory requirements.
