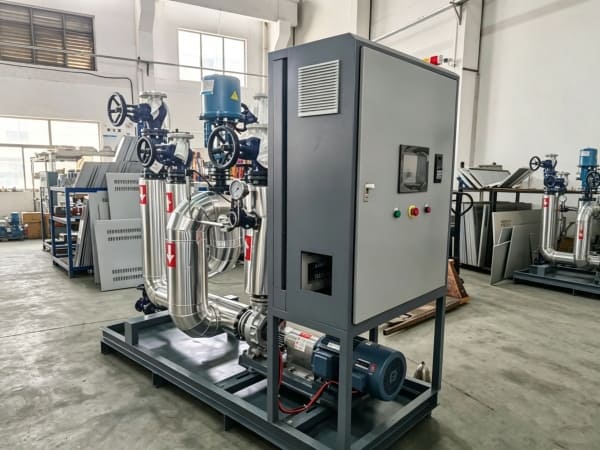

Secondary Loop
Temperature Control System
Advanced thermal oil circulation system delivering ±0.5℃ precision for pharmaceutical, chemical, and aerospace applications. Engineered for 24/7 continuous operation with explosion-proof compliance.
Technical Specifications
Precision-engineered for demanding industrial applications with comprehensive safety and compliance features.
Core Parameters
| Temperature Range | -40°C ~ 350°C |
| Temperature Stability | ±0.5°C |
| Heating Capacity | 10kW ~ 500kW |
| Cooling Capacity | 5kW ~ 300kW |
| Flow Rate | 50L/min ~ 2000L/min |
| Working Pressure | 0.3MPa ~ 1.6MPa |
| Thermal Oil Type | Synthetic / Mineral |
| Control Accuracy | PID ±0.1°C |
| Safety Rating | Ex d IIB T4 Gb |
| Certifications | CE, ATEX, UL |
Key Features
Rapid Response
Advanced PID control with 30-second temperature adjustment response time
Explosion-Proof Design
ATEX certified for hazardous area deployment with intrinsic safety barriers
Smart Monitoring
Real-time data logging with remote access and predictive maintenance alerts
Multi-Safety Protection
Over-temperature, over-pressure, and dry-running protection with emergency shutdown
System Components
Precision-engineered components working in harmony to deliver unmatched thermal control performance.
Heat Exchanger Unit
High-efficiency plate heat exchanger with 316L stainless steel construction for superior thermal transfer and corrosion resistance.
- • Thermal efficiency: >95%
- • Material: 316L stainless steel
- • Design pressure: 1.6MPa
- • Cleanable design for maintenance
Intelligent Control Panel
Advanced PLC-based control system with 7-inch HMI touchscreen for precise temperature regulation and system monitoring.
- • PID temperature control ±0.1°C
- • 7" color touchscreen interface
- • Remote monitoring capability
- • Data logging & trending
High-Temperature Circulation Pump
Magnetic drive centrifugal pump designed for high-temperature thermal oil circulation with zero leakage operation.
- • Magnetic coupling drive
- • Operating temp: -40°C to 350°C
- • Variable frequency control
- • Dry-running protection
Multi-Level Safety System
Comprehensive safety protection including pressure relief valves, emergency shutdown, and explosion-proof components.
- • Pressure relief valves
- • Emergency shutdown system
- • Over-temperature protection
- • ATEX explosion-proof rating
Thermal Expansion Tank
Nitrogen-pressurized expansion tank with level monitoring to accommodate thermal oil volume changes during operation.
- • Nitrogen pre-pressurization
- • Level monitoring system
- • Insulated construction
- • Automatic pressure control
Thermal Oil Filtration System
Multi-stage filtration system to maintain thermal oil purity and extend system life with automatic backwash capability.
- • 5μm filtration accuracy
- • Automatic backwash function
- • Differential pressure monitoring
- • Replaceable filter elements
End-to-End Process Flow
From initial consultation to final delivery, our systematic approach ensures precision and quality at every step.
Consultation & Design
Requirements analysis, thermal load calculation, and custom system design with 3D modeling
Order Confirmation
Technical specification approval, contract signing, and production scheduling with material procurement
Manufacturing
Precision fabrication, component assembly, and quality control testing in ISO-certified facility
Testing & Validation
Performance testing, calibration verification, and safety compliance validation with documentation
Delivery & Support
Professional packaging, worldwide shipping, on-site installation, and comprehensive training
Quality Assurance & Documentation
Manufacturing Standards
- ISO 9001:2015 Quality Management System
- ASME Boiler and Pressure Vessel Code compliance
- CE marking and ATEX explosion-proof certification
- Material traceability and NDT testing reports
Delivery Package
- Complete technical documentation package
- Calibration certificates and test reports
- Operation & maintenance manuals
- 24-month warranty and technical support
Get Your Custom Quote
Professional engineers ready to design your optimal temperature control solution
