100°C Heat Pump
Industrial Solutions
Revolutionary Ultra-High Temperature Heat Pump Unit delivering 100°C output for pharmaceutical sterilization, chemical processing, and industrial drying. Maximum energy efficiency with COP ≥3.5 performance.
Technical Specifications
Engineered for extreme temperature applications with uncompromising reliability and efficiency.

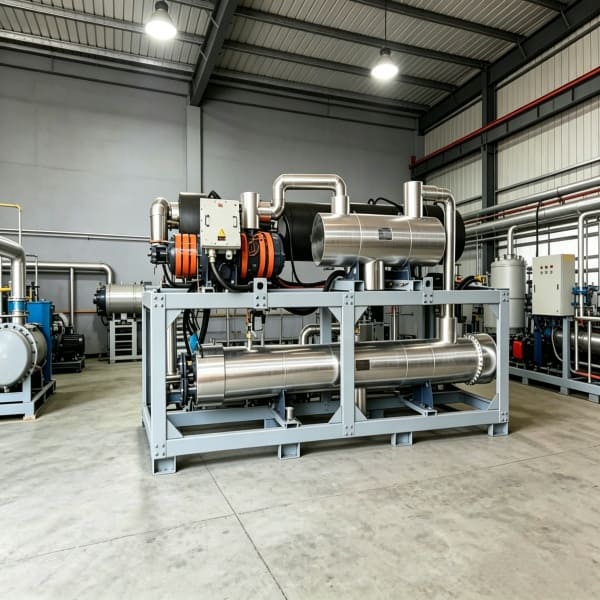

DELON Ultra-High Temperature Heat Pump Unit Specifications
| Parameter | Specification | Range/Options |
|---|---|---|
| Output Temperature | 100°C Maximum | 60°C - 100°C Adjustable |
| Heating Capacity | 50kW - 500kW | Custom sizing available |
| COP (Coefficient of Performance) | ≥3.5 @ 15°C ambient | 3.2 - 4.2 depending on conditions |
| Refrigerant | R1234yf / R450A | Eco-friendly, low GWP |
| Compressor Type | Scroll / Screw | High-temp optimized |
| Power Supply | 3100V/3Ph/50Hz | Custom voltage available |
| Control System | PLC + HMI Touchscreen | Remote monitoring ready |
| Operating Range | -10°C to +45°C ambient | Extended range options |
| Noise Level | ≤65dB(A) @ 1m | Sound enclosure available |
| Certifications | CE, ISO9001, AHRI | ATEX explosion-proof optional |
Premium Components & Design
Every component engineered for extreme temperature reliability and maximum efficiency.
High-Temperature Compressor
- ▪ Specially designed for 100°C discharge
- ▪ Enhanced cooling circuit protection
- ▪ Extended service life design
Thermal protection & variable speed control
Condenser Heat Exchanger
- ▪ Titanium tube construction
- ▪ Optimized for high-temp transfer
- ▪ Corrosion resistant materials
Maximum heat transfer efficiency
Advanced Control System
- ▪ 10" HMI touchscreen interface
- ▪ Precise temperature regulation
- ▪ Remote monitoring capability
±0.5°C temperature stability
Electronic Expansion Valve
- ▪ Precise refrigerant flow control
- ▪ Optimized superheat control
- ▪ Enhanced system efficiency
Real-time adaptive control
Safety Protection System
- ▪ High-pressure safety switches
- ▪ Over-temperature protection
- ▪ Emergency shutdown system
Multi-level safety redundancy
High-Temp Insulation
- ▪ Aerogel insulation technology
- ▪ Minimal heat loss design
- ▪ Fire-resistant materials
Maximum energy conservation
End-to-End Manufacturing Process
From initial consultation to final delivery - our comprehensive approach ensures perfect results.
Order & Consultation
Technical requirements analysis, load calculations, and custom configuration planning.
Engineering Design
Detailed system design, component selection, and thermal performance optimization.
Precision Manufacturing
ISO9001 controlled production with premium components and rigorous quality control.
Testing & Commissioning
Full performance testing, calibration, and system optimization at 100°C operation.
Quality Acceptance
Customer inspection, performance verification, and certification documentation.
Shipment & Delivery
Professional packaging, logistics coordination, and on-site installation support.
Complete Project Timeline
Industrial Applications
Perfect for high-temperature industrial processes requiring reliable, efficient heating solutions.
Pharmaceutical Sterilization
High-temperature steam generation for pharmaceutical equipment sterilization and clean-in-place (CIP) systems.
Industrial Drying
Energy-efficient heat supply for industrial drying processes in chemical and food industries.
Chemical Processing
Precise temperature control for chemical reactions requiring elevated temperatures up to 100°C.
Key Benefits
Ready to Transform Your Industrial Heating?
Get a customized quote for your Ultra-High Temperature Heat Pump Unit. Our engineers will design the perfect solution for your specific application.
24-Hour Response
Technical consultation and quotation within 24 hours
Quality Guarantee
2-year warranty with global service support
Custom Engineering
Tailored solutions for your specific requirements
DELON Industrial Solutions - Professional OEM/ODM manufacturer serving global high-end markets
No.4 Siza Road, Yangshe Town, Zhangjiagang, Jiangsu Prov., P.R. China
