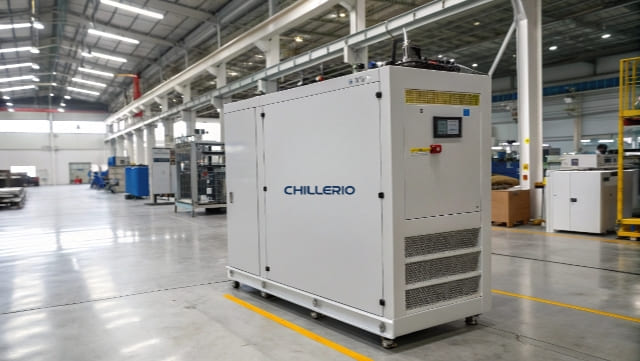

Air Cooled Packaged Chiller
High-efficiency air cooled chillers engineered for pharmaceutical, aerospace, and chemical industries. Delivering ±0.2℃ precision with FDA-compliant design and 24/7 continuous operation capability.

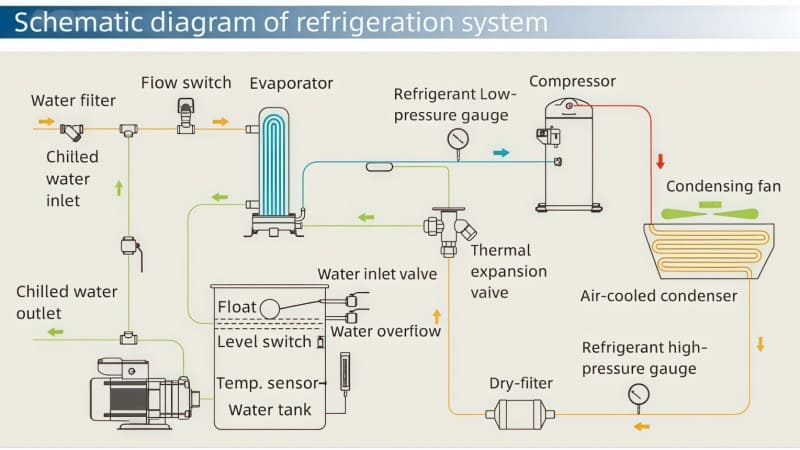

Technical Specifications
Engineered for precision and reliability in demanding industrial environments
Core Parameters
| Parameter | Range/Value | Unit |
|---|---|---|
| Cooling Capacity | 8 ~ 150 | kW |
| Temperature Range | +5 ~ +30 | ℃ |
| Temperature Precision | ±0.2 | ℃ |
| COP Efficiency | ≥3.8 | - |
| Noise Level | ≤55 | dB |
| Refrigerant | R134A / R1234yf / R450A | Eco-friendly |
| Power Supply | 380V/50Hz (Costomized) | 3Ph |
| Protection Grade | IP54 | Standard |
High Efficiency Design
Advanced scroll compressor technology with COP ≥4.8 for maximum energy savings
Compliance Ready
CE, UL, AHRI certified with full documentation package for global markets
Explosion-Proof Option
ATEX certified Ex d IIB/C T4 Gb design available for hazardous environments
Manufacturing Excellence
ISO9001 certified production process ensuring consistent quality and reliability
1. Design & Engineering
Load calculation, 3D modeling, compliance verification, and prototype development
2. Component Manufacturing
CNC machining, welding, surface treatment with precision quality control
3. Assembly & Testing
System integration, performance testing, calibration, and quality assurance
4. Packaging & Delivery
Professional packaging, documentation, certification, and global logistics
Key Components
Premium components engineered for reliability and performance

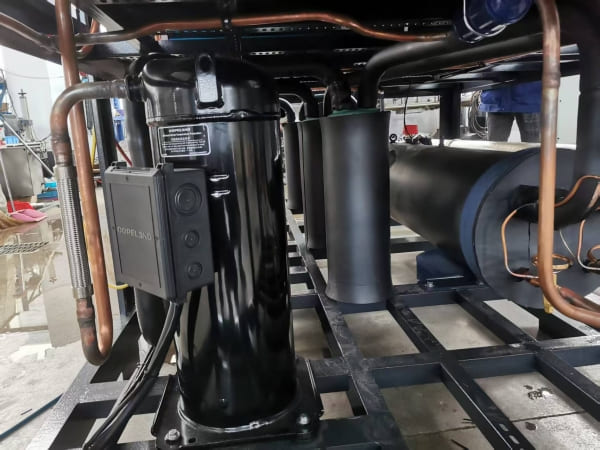

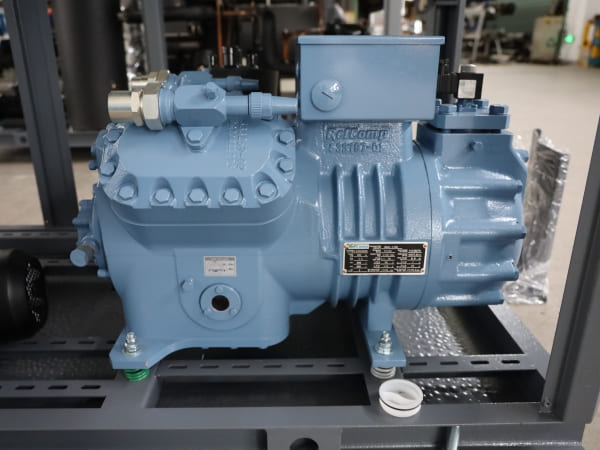

Scroll Compressor / Piston Compressor
Premium Copeland scroll compressor with hermetic design and optimized compression ratios for superior efficiency and reliability in demanding industrial cooling applications. Options for piston compressor.
- R134A/R410A/R407C refrigerant compatibility
- High COP efficiency up to 3.8
- Operating range: -15°C to 50°C ambient
Brass Plate Heat-Exchanger
High-conductivity brass plate construction with optimized flow channels for maximum thermal efficiency. Engineered for industrial applications requiring superior heat transfer performance and durability..
- Durable brass plate construction
- Enhanced thermal conductivity
- Compact & space-efficient design

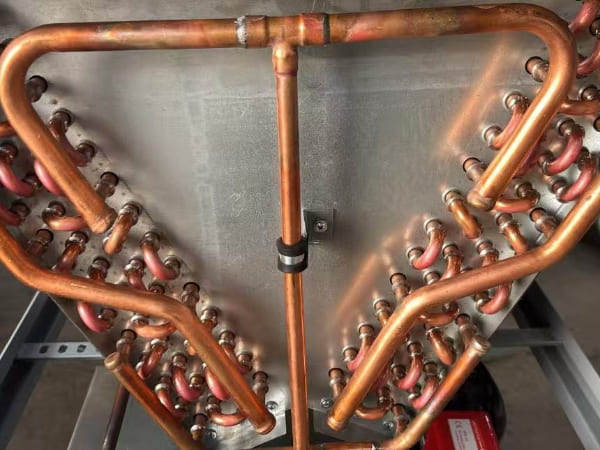

Air Cooled Condenser
Copper tube with aluminum fins design, optimized for maximum heat dissipation efficiency. Features advanced corrosion-resistant coating and all-weather protection for outdoor installations.
- High-efficiency copper tube design
- Advanced anti-corrosion coating
- All-weather resistant operation

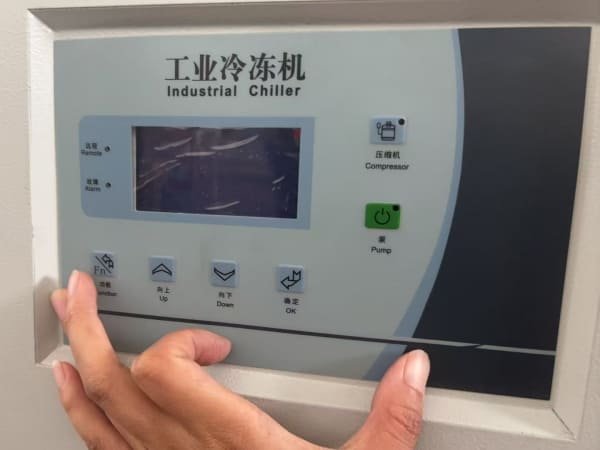

Intelligent Control System

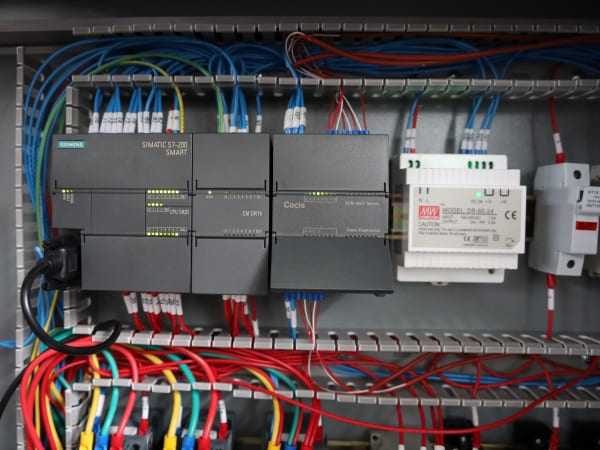

Advanced micro-computer control board with LCD display. Features remote monitoring capability, predictive maintenance alerts. Optional SIEMENS PLC system available for enhanced industrial automation..
- Real-time temperature monitoring
- Predictive maintenance alerts
- Remote diagnostic capabilities
- Energy optimization algorithms
Explosion-Proof Components
ATEX certified Ex d IIB T4 Gb components available for hazardous area installations. Full compliance with international safety standards for chemical plants and battery manufacturing facilities.

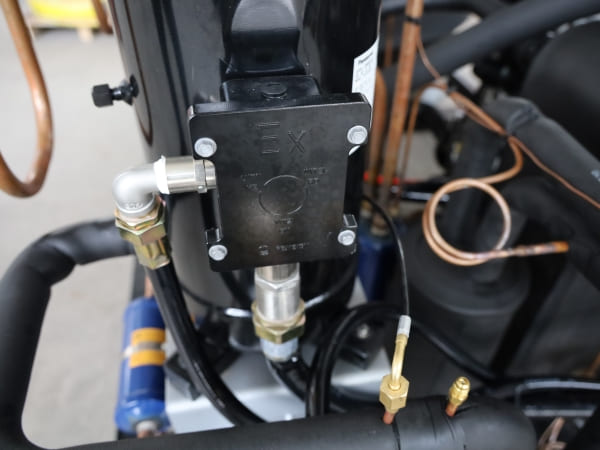

ATEX Terminal Box
Explosion-proof electrical components for hazardous environments

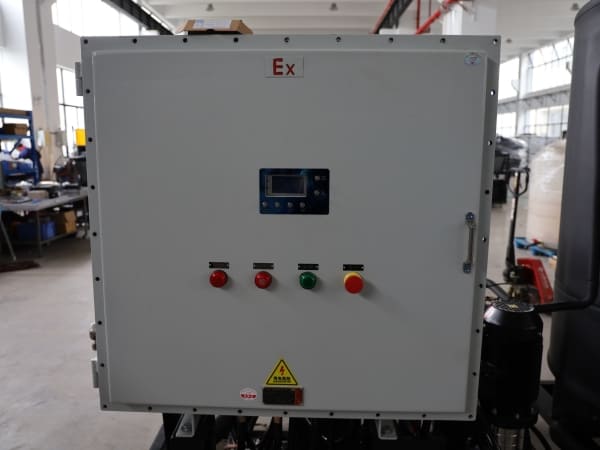

Control Box System
Integrated ATEX-compliant electrical control solutions

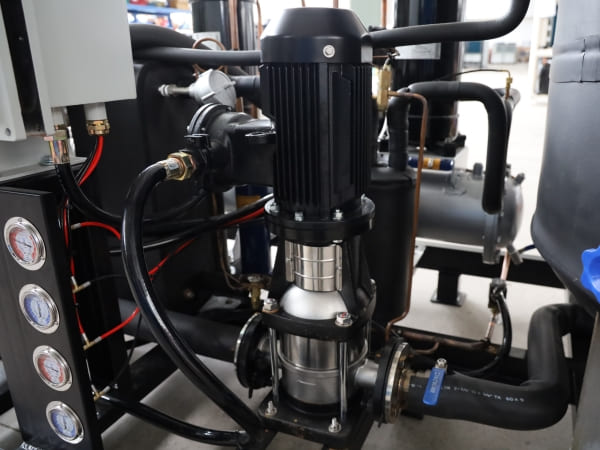

Industrial Component
High-precision manufacturing for critical applications
Ordering & Delivery Process
Streamlined process from inquiry to delivery with full documentation support
Ordering Flow
Technical Consultation
Share your requirements, application details, and environmental conditions. Our engineers provide load calculation and solution recommendations.
Quotation & Specifications
Receive detailed technical specifications, pricing, and delivery timeline. Includes compliance documentation requirements.
Contract & Payment
Sign manufacturing agreement with milestone payments. 35% deposit, 65% before the shipping but after the final testings.
Production & Testing
Manufacturing with regular progress updates. Factory acceptance testing with performance verification.
Shipping & Delivery
Documentation Package
Complete documentation including certificates, MSDS, operation manuals, spare parts list, and warranty terms.
Professional Packaging
Export-grade wooden crates with moisture protection. Shock-resistant packaging for sensitive components and control systems.
Global Logistics
Worldwide shipping via sea/air/railway freight. Real-time tracking and customs clearance support for international deliveries.
Installation Support
On-site commissioning, operator training, and 24-month warranty. Remote technical support and spare parts availability.
Start Your Air Cooled Chiller Project Today!
Professional OEM/ODM Only
We specialize in B2B manufacturing for global premium markets. Contact us for technical consultation and custom solutions.
